Top 5 Infrared Cameras for Electrical Inspections: A Review Guide

Did you know that a small electrical problem can quickly turn into a big fire? Scary, right? That’s why keeping your electrical system safe is super important. But how do you find hidden dangers like loose wires or overloaded circuits? The answer is simple: infrared cameras!

Choosing the right infrared camera for electrical inspections can be tricky. There are so many different kinds and prices. You might feel confused about what features you need. You might also worry about making the wrong choice, which could mean missing important problems. That’s a big headache!

In this blog post, we’ll help you understand everything you need to know. We’ll show you how infrared cameras work and why they’re important for electrical safety. You will learn what to look for when buying one. By the end, you’ll be able to pick the perfect infrared camera to keep your electrical system safe and sound. Let’s get started!

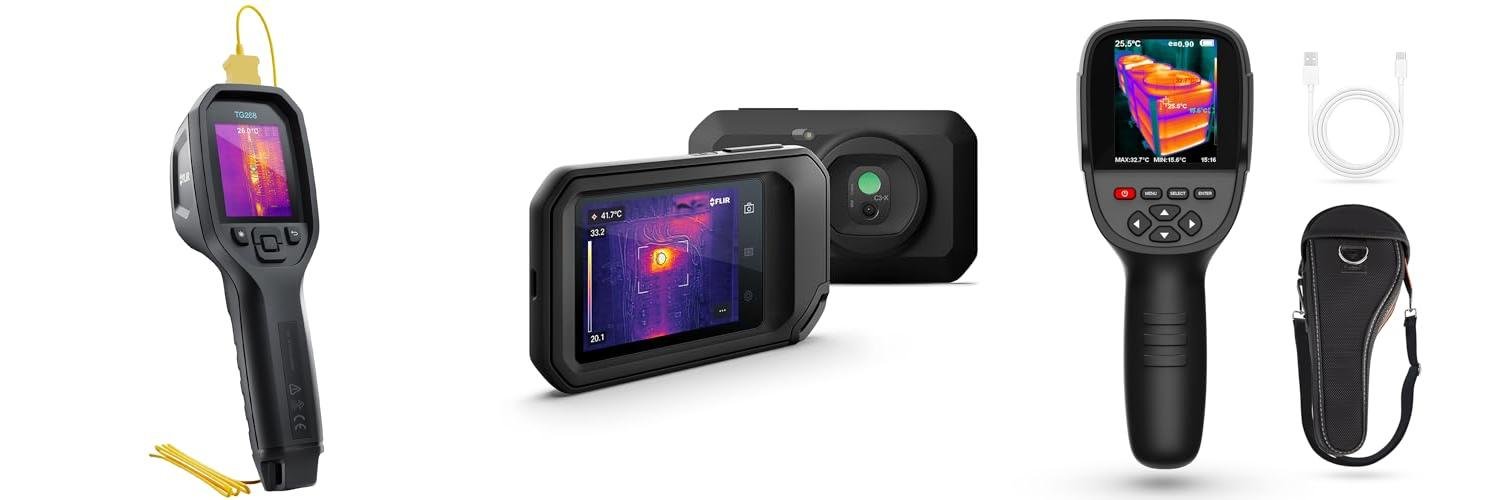

Our Top 5 Infrared Camera For Electrical Inspections Recommendations at a Glance

Top 5 Infrared Camera For Electrical Inspections Detailed Reviews

1. FLIR TG268 Thermal Imaging Camera with Spot IR Super Resolution (320 x 240) and Bullseye Laser: Commercial Grade Infrared Camera for Building Inspection

FLIR TG268 Thermal Imaging Camera with Spot IR Super Resolution (320 x 240) and Bullseye Laser: Commercial Grade Infrared Camera for Building Inspection, HVAC and Electrical

Rating: 9.2/10

The FLIR TG268 is a tough thermal imaging camera. It helps you find problems quickly. It’s perfect for professionals in building inspection, HVAC, and electrical work. This camera uses infrared to see heat. It shows you exactly where problems are, like leaks or overheating wires.

What We Like:

  • SUPER RESOLUTION: The camera makes the image sharper. It shows more details with its 320 x 240 resolution.
  • High Temperature Range: It can measure temperatures up to 400°C (752°F).
  • Clear Images: MSX technology adds details to the thermal image. This makes it easy to understand.
  • Laser Pointer: The bullseye laser helps you find the exact spot you are measuring.
  • Rugged Design: It’s strong and can handle drops. It’s protected from dust and oil with an IP54 rating.
  • Warranty: FLIR offers a great warranty. You get 2 years of coverage for parts and labor, and 10 years for the detector.

What Could Be Improved:

  • Price: This is a professional-grade tool, so it costs more than basic models.

The FLIR TG268 is a reliable and powerful thermal imaging camera. It’s a valuable tool for anyone needing to find hidden problems.

2. FLIR C3-X Compact Thermal Imaging Camera with WiFi: High Resolution Infrared Imager for Inspection

FLIR C3-X Compact Thermal Imaging Camera with WiFi: High Resolution Infrared Imager for Inspection, Electrical/Mechanical, Building, and HVAC Applications

Rating: 9.0/10

The FLIR C3-X is a small, handheld thermal imaging camera. It helps you find problems quickly. This camera measures temperatures from -20 to 300°C (-4 to 572°F). You can use it for many jobs. These jobs include inspecting buildings, checking electrical systems, and working on HVAC systems. It uses special MSX technology. MSX makes images clearer and easier to understand. You can also share your images easily using WiFi and the FLIR Ignite cloud. You can then create reports and send them to clients.

What We Like:

  • Finds hidden problems quickly.
  • MSX technology makes images sharp.
  • Easy to share images with WiFi.
  • Comes with a good warranty from FLIR.
  • Small and easy to carry.

What Could Be Improved:

  • The resolution is not as high as some other thermal cameras.

The FLIR C3-X is a useful tool for many professionals. It is a good choice for anyone who needs to find heat-related problems.

3. GOYOJO 256×192 Thermal Imaging Camera with Dual-Light Fusion

GOYOJO 256x192 Thermal Imaging Camera with Dual-Light Fusion, -4~1022°F, Handheld Infrared Thermal Imager for Home Inspection HVAC Electrical and Mechanical Maintenance

Rating: 9.1/10

The GOYOJO GW256 thermal imaging camera is a powerful tool. It helps find problems you can’t see with your eyes. It combines regular and thermal images for clear pictures. This handheld imager is great for many jobs, from fixing homes to working in factories.

What We Like:

  • Superior Imaging: You get clear thermal images with its 256×192 resolution. The dual-light fusion makes it easy to see problems.
  • Easy Data Handling: You can save pictures and videos. Transferring data to your computer is simple.
  • Real-Time Monitoring: It finds hot and cold spots quickly. This helps you fix issues fast.
  • Wide Use: It works for many jobs, like fixing electrical systems and maintaining machines.
  • Built to Last: It’s made with strong materials. This protects your investment.

What Could Be Improved:

  • (No cons mentioned in the provided features)

The GOYOJO GW256 is a reliable tool for professionals. It finds hidden heat problems, making it a valuable asset for different industries.

4. GOYOJO Thermal Imaging Camera for Android

GOYOJO Thermal Imaging Camera for Android, 192x192 IR Resolution, USB-C Thermal Imager, -4℉ to 752℉ Infrared Camera for Home Inspection, HVAC, Electrical, Plumbing, Automotive & Mechanical Diagnostics

Rating: 9.4/10

The GOYOJO Thermal Imaging Camera turns your Android phone into a powerful thermal imager. It connects easily with a USB-C plug. This lets you find hidden problems in your home, car, or at work. The camera has a high 192×192 resolution. It can measure temperatures from -4°F to 752°F. This makes it great for many jobs, from home inspections to fixing cars.

What We Like:

  • 🔥 Turn your smartphone into a thermal camera.
  • 🖼️ It has a high-resolution 192×192 thermal imaging.
  • 👀 📏 The wide 50° field of view is great for scanning large areas.
  • 🌡️ The broad temperature range is good for many tasks.
  • 🎯 It is accurate for important checks.
  • 🛠️ It is small, easy to carry, and tough.
  • 🔍 It is useful for many jobs.

What Could Be Improved:

  • iOS app is coming soon, but not available yet.

This GOYOJO Thermal Imaging Camera is a handy tool for many users. It is a good choice for anyone who needs to find hidden heat problems.

5. TOPDON TC004 Thermal Imaging Camera

TOPDON TC004 Thermal Imaging Camera, 256 x 192 IR High Resolution 12-Hour Battery Life Handheld Infrared Camera with PC Analysis and Video Recording Supported, 16GB Micro SD Card

Rating: 8.7/10

The TOPDON TC004 Thermal Imaging Camera is a powerful tool. It helps you see heat and find problems. This handheld camera has a high resolution and can measure temperatures accurately. It is great for many jobs around the house or at work.

What We Like:

  • High-resolution images with 256×192 pixels.
  • Accurate temperature readings with a range from -4°F to 662°F.
  • Long battery life, up to 12 hours.
  • Can connect to a computer for analysis and 3D imaging.
  • Records videos and takes photos.
  • Has an alarm for high and low temperatures.
  • Comes with a 16GB memory card.
  • Durable design with a drop resistance of 2 meters.

What Could Be Improved:

  • None mentioned in the provided information.

The TOPDON TC004 is a helpful and reliable thermal imaging camera. It is a good choice for anyone needing to see heat patterns.

See the Heat: Your Guide to Buying an Infrared Camera for Electrical Inspections

Are you ready to become a heat-seeking superhero? Infrared cameras, also called thermal cameras, are awesome tools for electrical inspections. They let you see heat. This helps you find problems like loose wires or overloaded circuits. This guide will help you pick the right one.

Key Features to Look For

You need to know what makes a good infrared camera. Here’s what to check:

  • Resolution: Think of this like the camera’s eyesight. Higher resolution means a clearer picture. You’ll see more details. Look for at least 160×120 pixels. Better cameras have 320×240 or even higher!
  • Temperature Range: Electrical work can get hot. Make sure the camera can measure the temperatures you’ll see. Check the camera’s specifications for its temperature range.
  • Thermal Sensitivity (NETD): This shows how well the camera can spot small temperature changes. A lower number is better. It means the camera can see smaller differences in heat.
  • Field of View (FOV): This is how much the camera can “see” at once. A wider FOV is good for looking at big areas. A narrower FOV is better for details.
  • Focus: Some cameras have fixed focus. Others let you adjust it. Adjustable focus helps you get clear pictures of things up close or far away.
  • Image Fusion: Some cameras combine a regular picture with the thermal image. This makes it easier to understand what you’re seeing. This is a super helpful feature.
  • Software: Good software lets you analyze the images you take. It should be easy to use. You can create reports and share your findings.

Important Materials

Infrared cameras use special materials. These materials help the camera see heat.

  • Detector: This is the “brain” of the camera. It senses the infrared radiation (heat). Detectors can be made of different materials, like microbolometers.
  • Lens: The lens focuses the infrared light onto the detector. Lenses are often made of materials like germanium. They are very good at letting infrared light pass through.
  • Housing: The body of the camera protects all the parts inside. It should be tough and durable. This is important if you’re working in harsh conditions.

Factors That Improve or Reduce Quality

Several things affect how good an infrared camera is.

  • Calibration: Cameras need to be calibrated correctly. This makes sure they are accurate.
  • Manufacturing Quality: Well-made cameras are more reliable. They will last longer. Quality control is very important.
  • Brand Reputation: Some brands are known for making good cameras. Research the brands before you buy. Read reviews and see what other users say.
  • Environmental Conditions: Temperature and humidity can affect the camera’s performance. Make sure the camera can handle the conditions where you work.
  • Ease of Use: A camera that’s easy to use will save you time. It will also help you avoid mistakes.

User Experience and Use Cases

Using an infrared camera is pretty straightforward. Here’s how it works:

  1. Turn it on.
  2. Point the camera at the electrical equipment.
  3. See the heat! Hot spots will show up as brighter colors.
  4. Take pictures. Save the images for your records.
  5. Analyze the images. Use the software to understand what you see.

You can use an infrared camera for many things:

  • Finding Overloaded Circuits: See if a circuit is getting too hot.
  • Checking Connections: Look for loose or corroded connections.
  • Inspecting Breakers: Check if breakers are working correctly.
  • Preventing Fires: Catch problems before they cause a fire.
  • Troubleshooting: Pinpoint the source of electrical problems quickly.

Infrared Camera FAQ

Q: What does “resolution” mean?

A: Resolution is how clear the image is. Higher resolution cameras show more detail.

Q: Why is “thermal sensitivity” important?

A: Thermal sensitivity shows how well the camera can see small temperature differences. A low number is better.

Q: What is “image fusion”?

A: Image fusion combines a regular picture with the thermal image. This makes it easier to understand the heat patterns.

Q: What is a “field of view”?

A: The field of view is how much the camera can see at once. A wider FOV lets you see more.

Q: Can I use an infrared camera in any weather?

A: No. Check the camera’s specifications. Some are made for specific conditions.

Q: How do I know if a camera is accurate?

A: Make sure it has been properly calibrated. Also, read reviews to see what others say.

Q: What kind of training do I need to use an infrared camera?

A: You can learn the basics quickly. For more in-depth analysis, consider getting training.

Q: Can I use an infrared camera to look at anything?

A: Yes, but it’s mostly used for electrical inspections.

Q: How do I take care of my infrared camera?

A: Keep it clean and protected. Follow the manufacturer’s instructions.

Q: Where can I buy an infrared camera?

A: You can buy them online or from electrical supply stores.

In conclusion, every product has unique features and benefits. We hope this review helps you decide if it meets your needs. An informed choice ensures the best experience.

If you have any questions or feedback, please share them in the comments. Your input helps everyone. Thank you for reading.
